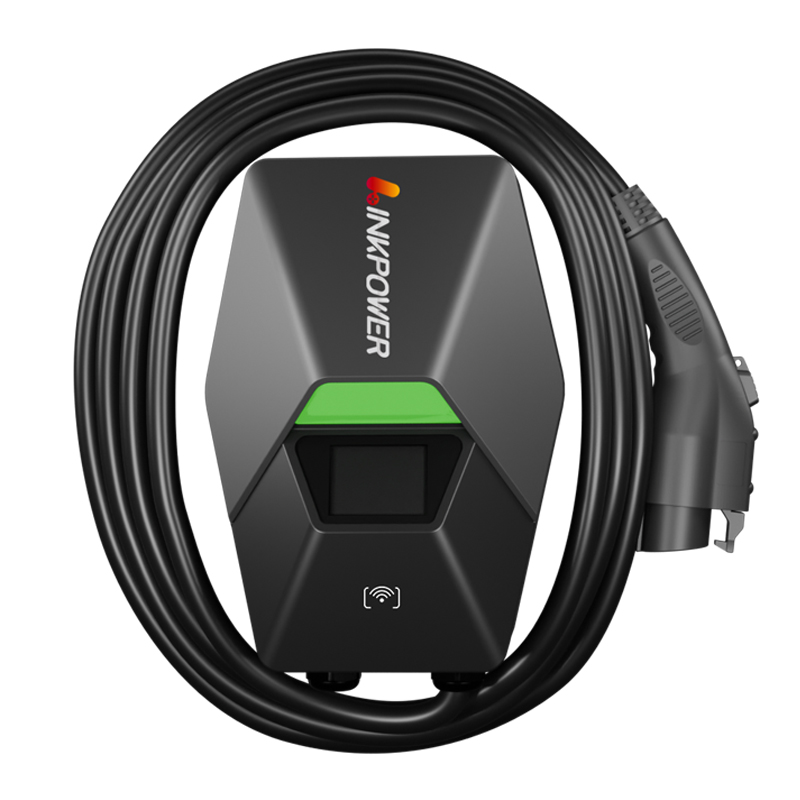

Level 2 Home Electric Car Chargers with Max Current 48A Charges
Short Description:
The HS100’s sleek design, competitive price, and output of up to 48 amps is ideal for an easier, faster, and better home charging experience. The HS100 is able to connect to Wi-Fi and Bluetooth, thus to communicates with the cellphone App to complete the configuration. The HS100 can be controlled from anywhere, allowing you to schedule your charging hours to take full advantage of off-peak electricity rates.
»IP54 /IK10
»2.5” Digital Screen
»Wall-mounted or pedestal-mounted options
»Maximum power up to 11.5kw (48A)
»OCPP1.6 J/OCPP2.0.1 Upgradeable
»Type 1 or NACS 18ft(5.5m)(Standard)/25ft(7.5m)(Optional)
Certificates
Home Charging Solutions
Home Ev Car Charger
Stylish exterior design, lightweight, special material, no yellowing, comes with a three-year warranty, level 2 charging speed, can meet your charging needs
Level 2 Ev Home Charger
Level 2 charger is an electric vehicle charging solution that provides 240 volts of power. It charges faster than Level 1 chargers by using higher current and power, typically charging a vehicle in a few hours. It is suitable for home, commercial, and public charging stations.
Home EV Charger Solution: A Smart Charging Choice
As the number of electric vehicles (EVs) on the road increases, home EV chargers are becoming a crucial solution for owners seeking convenient and cost-effective charging options. A Level 2 charger provides fast charging, typically capable of delivering up to 25-30 miles of range per hour of charging, making it ideal for daily use. These chargers can be installed in residential garages or driveways, often requiring professional installation to ensure safety and optimal performance. The ability to charge at home means EV owners can start each day with a fully charged vehicle, avoiding the need to visit public charging stations. With advancements in smart charging technology, users can manage their charging times, monitor energy consumption, and even take advantage of off-peak electricity rates for cost savings.
| LEVEL 2 AC CHARGER | |||
| Model Name | HS100-A32 | HS100-A40 | HS100-A48 |
| Power Specification | |||
| Input AC Rating | 200~240Vac | ||
| Max. AC Current | 32A | 40A | 48A |
| Frequency | 50HZ | ||
| Max. Output Power | 7.4kW | 9.6kW | 11.5kW |
| User Interface & Control | |||
| Display | 2.5″ LED Screen | ||
| LED Indicator | Yes | ||
| User Authentication | RFID (ISO/IEC 14443 A/B), APP | ||
| Communication | |||
| Network Interface | LAN and Wi-Fi (Standard) /3G-4G (SIM card) (Optional) | ||
| Communication Protocol | OCPP 1.6 (Optional) | ||
| Environmental | |||
| Operating Temperature | -30°C~50°C | ||
| Humidity | 5%~95% RH, Non-condensing | ||
| Altitude | ≤2000m, No Derating | ||
| IP/IK Level | IP54/IK08 | ||
| Mechanical | |||
| Cabinet Dimension (W×D×H) | 7.48“×12.59”×3.54“ | ||
| Weight | 10.69lbs | ||
| Cable Length | Standard: 18ft, 25ft Optional | ||
| Protection | |||
| Multiple Protection | OVP (over voltage protection), OCP(over current protection), OTP(over temperature protection), UVP(under voltage protection), SPD(Surge Protection),Grounding protection, SCP(short circuit protection), control pilot fault, Relay welding detection, CCID self-test | ||
| Regulation | |||
| Certificate | UL2594, UL2231-1/-2 | ||
| Safety | ETL | ||
| Charging Interface | SAEJ1772 Type 1 | ||
