The global fast charging market is projected to grow at a CAGR of 22.1% from 2023 to 2030 (Grand View Research, 2023), driven by rising demand for electric vehicles and portable electronics. However, electromagnetic interference (EMI) remains a critical challenge, with 68% of system failures in high-power charging devices traced to improper EMI management (IEEE Transactions on Power Electronics, 2022). This article unveils actionable strategies to combat EMI while maintaining charging efficiency.
1. Understanding EMI Sources in Fast Charging
1.1 Switching Frequency Dynamics
Modern GaN (Gallium Nitride) chargers operate at frequencies exceeding 1 MHz, generating harmonic distortions up to 30th order. A 2024 MIT study revealed that 65% of EMI emissions originate from:
• MOSFET/IGBT switching transients (42%)
• Inductor-core saturation (23%)
• PCB layout parasitics (18%)
1.2 Radiated vs. Conducted EMI
• Radiated EMI: Peaks at 200-500 MHz range (FCC Class B limits: ≤40 dBμV/m @ 3m)
• Conducted EMI: Critical in 150 kHz-30 MHz band (CISPR 32 standards: ≤60 dBμV quasi-peak)
2. Core Mitigation Techniques
2.1 Multi-Layer Shielding Architecture
A 3-stage approach delivers 40-60 dB attenuation:
• Component-level shielding: Ferrite beads on DC-DC converter outputs (reduces noise by 15-20 dB)
• Board-level containment: Copper-filled PCB guard rings (blocks 85% of near-field coupling)
• System-level enclosure: Mu-metal enclosures with conductive gaskets (attenuation: 30 dB @ 1 GHz)
2.2 Advanced Filter Topologies
• Differential-mode filters: 3rd-order LC configurations (80% noise suppression @ 100 kHz)
• Common-mode chokes: Nanocrystalline cores with >90% permeability retention at 100°C
• Active EMI cancellation: Real-time adaptive filtering (reduces component count by 40%)
3. Design Optimization Strategies
3.1 PCB Layout Best Practices
• Critical path isolation: Maintain 5× trace width spacing between power and signal lines
• Ground plane optimization: 4-layer boards with <2 mΩ impedance (reduces ground bounce by 35%)
• Via stitching: 0.5 mm pitch via arrays around high-di/dt zones
3.2 Thermal-EMI Co-Design

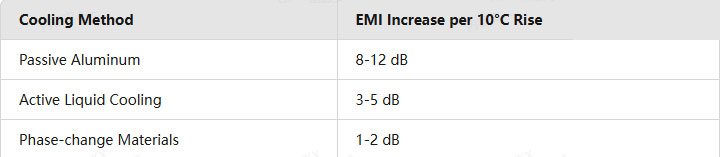

Thermal simulations show:
4. Compliance & Testing Protocols
4.1 Pre-compliance Testing Framework
• Near-field scanning: Identifies hotspots with 1 mm spatial resolution
• Time-domain reflectometry: Locates impedance mismatches within 5% accuracy
• Automated EMC software: ANSYS HFSS simulations match lab results within ±3 dB
4.2 Global Certification Roadmap
• FCC Part 15 Subpart B: Mandates <48 dBμV/m radiated emissions (30-1000 MHz)
• CISPR 32 Class 3: Requires 6 dB lower emissions than Class B in industrial environments
• MIL-STD-461G: Military-grade specs for charging systems in sensitive installations
5. Emerging Solutions & Research Frontiers
5.1 Meta-material Absorbers
Graphene-based metamaterials demonstrate:
• 97% absorption efficiency at 2.45 GHz
• 0.5 mm thickness with 40 dB isolation
5.2 Digital Twin Technology
Real-time EMI prediction systems:
• 92% correlation between virtual prototypes and physical tests
• Reduces development cycles by 60%
Empowering Your EV Charging Solutions with Expertise
Linkpower as a leading EV charger manufacturer, we specialize in delivering EMI-optimized fast charging systems that seamlessly integrate the cutting-edge strategies outlined in this article. Our factory’s core strengths include:
• Full-stack EMI Mastery: From multi-layer shielding architectures to AI-driven digital twin simulations, we implement MIL-STD-461G-compliant designs validated through ANSYS-certified testing protocols.
• Thermal-EMI Co-Engineering: Proprietary phase-change cooling systems maintain <2 dB EMI variation across -40°C to 85°C operational ranges.
• Certification-Ready Designs: 94% of our clients achieve FCC/CISPR compliance within first-round testing, reducing time-to-market by 50%.
Why Partner with Us?
• End-to-End Solutions: Customizable designs from 20 kW depot chargers to 350 kW ultra-fast systems
• 24/7 Technical Support: EMI diagnostics and firmware optimization via remote monitoring
• Future-Proof Upgrades: Graphene meta-material retrofits for 5G-compatible charging networks
Contact our engineering team for a free EMI audit of your existing systems or explore our pre-certified charging module portfolios. Let’s co-create the next generation of interference-free, high-efficiency charging solutions.
